บทนำ
Sangfor IAG (Internet Access Gateway) สามารถ Integrate กับ Athena NDR (เดิมชื่อ Sangfor Cyber Command) เพื่อ Synchronize ข้อมูล User และ Asset ไปยัง NDR ทำให้ NDR ระบุได้ว่าใคร (User Identity) อยู่เบื้องหลัง IP ที่เกิด Security Incident และสามารถสั่ง IAG ให้ Freeze/Lock Account ผ่าน Auto Response Playbook ได้
หมายเหตุ: IAG ส่งเฉพาะข้อมูล User และ Asset ไปยัง NDR เท่านั้น IAG ไม่ได้ส่ง Log ไปยัง NDR
ข้อกำหนดเบื้องต้น
- NDR และ IAG ใช้งานได้ปกติ
- IAG เวอร์ชันที่แนะนำ: 12.0.27 ขึ้นไป
- เปิด Network Path ระหว่าง IAG และ NDR ดังนี้
- IAG → NDR: TCP 9443 และ UDP 1773
- NDR → IAG: TCP 7443 และ TCP 9998
- IAG ต้องมีการ Authentication ผู้ใช้ (Password-based หรือ SSO) — User ที่ไม่ต้อง Authenticate จะไม่ถูก Sync ไปยัง NDR
ขั้นตอนที่ IAG
1. Device Correlation และ Asset Report
- Login เข้า IAG Web Console
- ไปที่ System > General > Device Correlation แล้วติ๊ก Enable correlation to Sangfor devices
- คลิก Correlation Options
- ติ๊ก Shared Secret แล้วกรอก Username และ Password (บันทึกไว้ เพื่อใช้ตอนเพิ่ม Device ที่ NDR)
- Peer IP Addresses: ใส่ IP ของ NDR
- Asset Data Reporting: ติ๊ก Enable และเลือก Source Device เป็น Specified แล้วใส่ IP ของ NDR
- คลิก Commit
2. User Information Synchronization (SSO)
- ไปที่ Access Mgt > Authentication > Web Authentication > Single Sign-On (SSO)
- เลือก Category Sangfor Appliance
- ติ๊ก Send user credentials to other Sangfor appliances
- Forward Credentials To: ใส่ IP ของ NDR ตามรูปแบบในภาพ
- กรอก Shared Key แล้วบันทึก
3. ตรวจสอบ Authentication Policy
IAG จะ Sync เฉพาะ User ที่ผ่าน Password Authentication หรือ Single Sign-On เท่านั้น ให้ตรวจสอบที่ Access Mgt > Web Authentication > Authentication Policy ว่า Policy ที่ใช้งานตั้ง Auth Method เป็น Password based (หรือ SSO)
ขั้นตอนที่ Athena NDR
1. เพิ่ม IAG เป็น Sensor Device
- Login เข้า Athena NDR Web Console
- ไปที่ System > Devices > Sensor Devices แล้วคลิก New
- Type: เลือก Internet Access Gateway
- กรอก Device IP (IP ของ IAG) และ Device Name
- Version: เลือกให้ตรงกับเวอร์ชันของ IAG (Earlier than 12.0.27 หรือ 12.0.27 or Later)
- Shared Key, Username, Auth Password: ใส่ค่าเดียวกับที่ตั้งไว้ที่ IAG (ใช้ Password ที่ตั้งตอนขั้นตอนที่ 1.4)
- คลิก Test — ต้องขึ้นว่าสำเร็จ แล้วคลิก OK
2. ตรวจสอบ Asset บน NDR
ไปที่ Assets > Assets จะเห็นข้อมูล Asset และ User ที่ IAG ส่งมา
Response Policy: Freeze Account ผ่าน IAG (Optional)
ตัวอย่าง Policy: สำหรับทุก Asset เมื่อเกิด Security Incident ที่กำหนด ให้ NDR สั่ง IAG Freeze Account ของผู้ใช้ เปลี่ยนสถานะของ Host เป็น "อยู่ระหว่างดำเนินการ" และ Query ข้อมูล Account ที่ถูก Freeze กลับมา
1. ตรวจสอบการเชื่อมต่อ
ก่อนสร้าง Policy ให้ตรวจสอบที่ System > Devices > Sensor Devices ว่า IAG เชื่อมต่อได้ปกติ

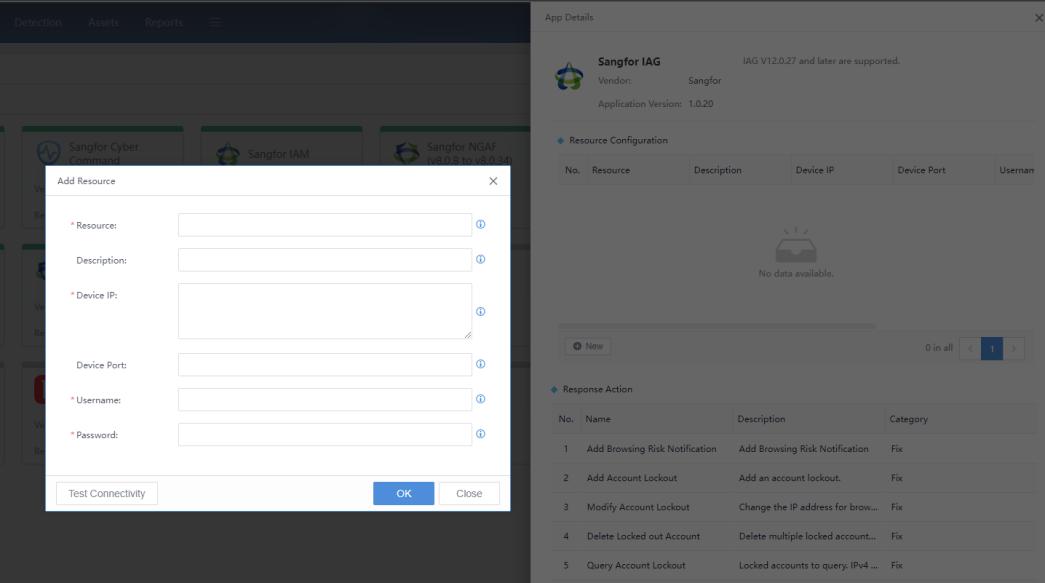

และที่ System > Devices > Response App ตรวจสอบว่า Sangfor IAG ถูกเพิ่มและเชื่อมต่อได้ปกติ (คลิก Test Connectivity)
- Device Port เว้นว่างได้ — ค่า Default จะใช้ Port 9998 และ 7443 ในการเชื่อมต่อ IAG
- Username, Password: ใส่ค่าเดียวกับที่ตั้งไว้ที่ IAG (ใช้ Password ที่ตั้งตอนขั้นตอนที่ 1.4)
2. สร้าง Auto Response Playbook
- ไปที่ Response > Auto Response สร้าง Playbook Category แล้วคลิก New
- กรอก Policy Name, Policy Description, Policy Type, Execution Method และ Conditions for Execution ตามต้องการ (เช่น Security Incident in SQL Injection และ Asset Type in Host, Server)
3. Action: Add Host Freeze
เพิ่ม Action Node และตั้งค่า Action เป็น Add Host Freeze เลือก Unit of Lockout Duration และ Resource เป็น IAG (หรือ All)
4. Action: Query Account Lockout
เพิ่ม Action Node ถัดไป ตั้งค่า Action เป็น Query Account Lockout เพื่อดึงข้อมูล Account ที่ถูก Lock กลับมา (ตัวอย่างตั้ง Delayed Execution 60 วินาที)
5. บันทึกและเปิดใช้งาน
เมื่อเพิ่ม Node ครบแล้ว ให้ Save และ Enable Playbook
