การแบ่งประเภท Interface

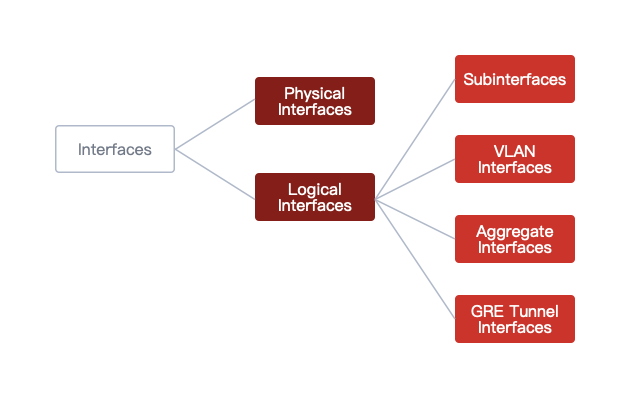

Interface ประเภทต่าง ๆ ของ NGAF

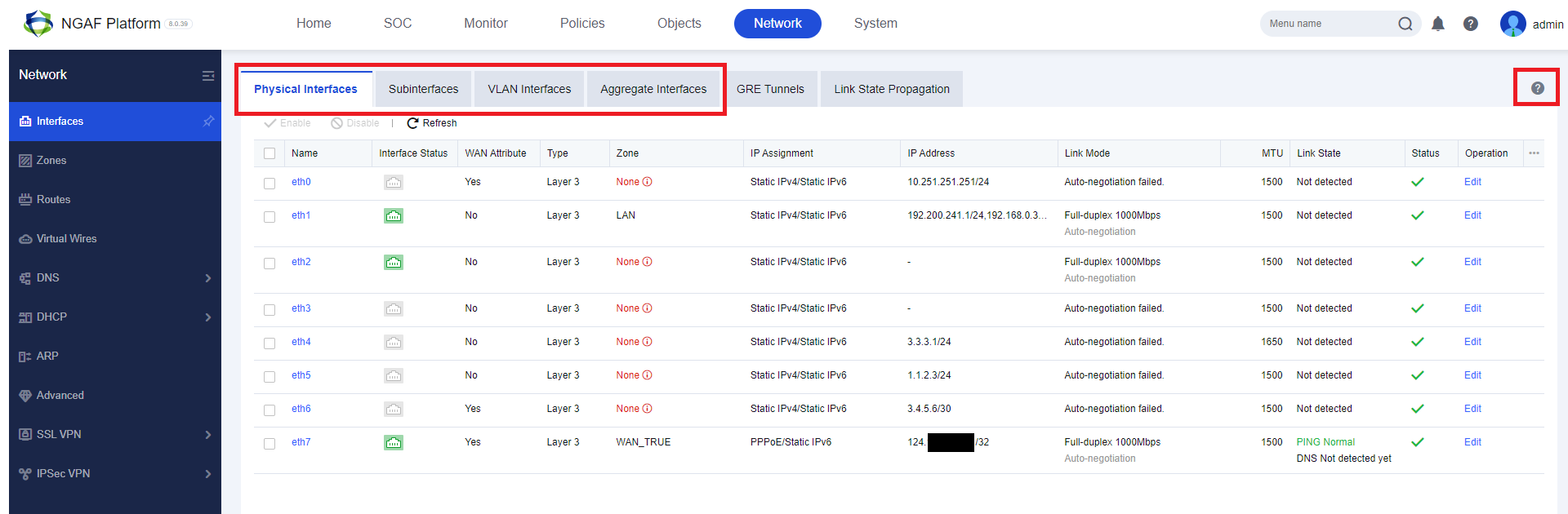

ไปที่ Network > Interfaces จะพบ Interface อยู่หลักๆ 4 แบบ ได้แก่
- Physical Interface - Interface จริง ๆ ที่อยู่บนหน้าอุปกรณ์ สามารถตั้งค่าได้เป็น L3 L2 L1(Virtual Wire)
- Subinterface - เป็น Logical Interface - ใช้เพื่อแบ่งจาก Physical Interface (L3 เท่านั้น) เป็น Logical Interface เพื่อใช้งาน VLAN เป็น L3
- VLAN Interface - เป็น Logical Interface - ใช้สำหรับ Deployment ที่เป็น Layer 2 โดยจะทำให้เป็น Layer 3 แบบ VLAN
- Aggregate Interface - เป็น Logical Interface - การรวม Ethernet Interface หลาย ๆ ช่องมารวมเป็น 1 Logical Interface สามารถตั้งค่าเป็น L3 L2 L1 ได้
จะตั้งค่า VLAN ต้องใส่ตรงไหน ?
- Physical/Logical L3 -> ใช้ Subinterface
- Physical/Logical L2 -> ใช้ VLAN Interface
ตัวอย่างรูปภาพ

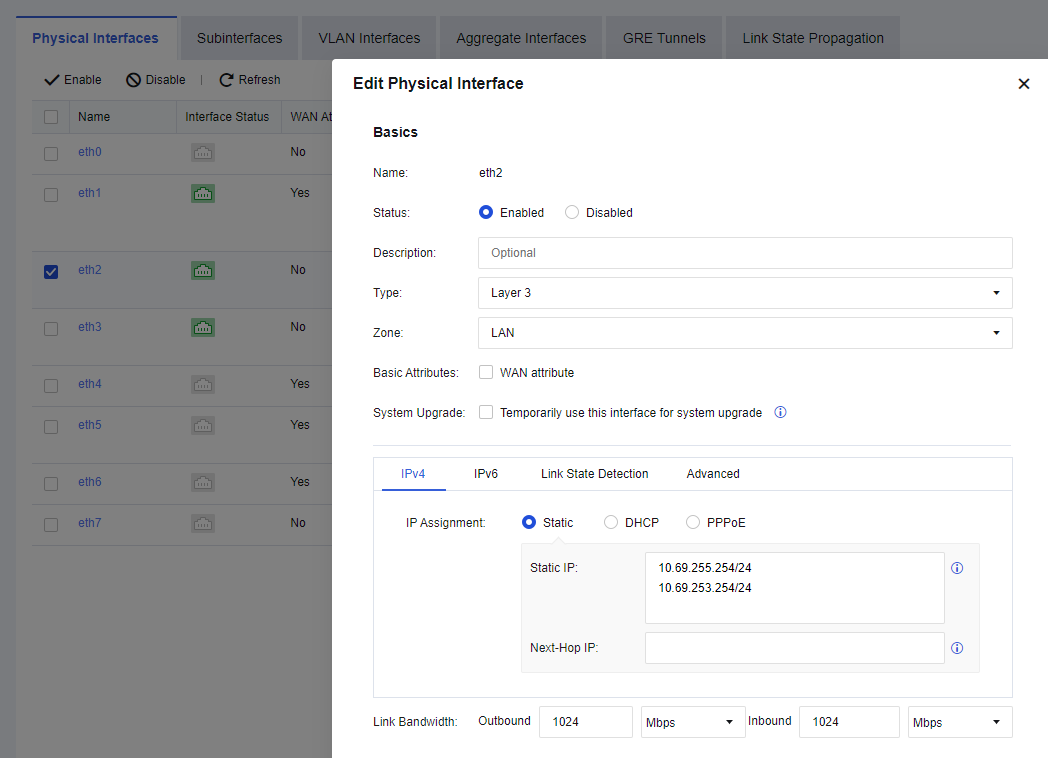

1. Physical Interface

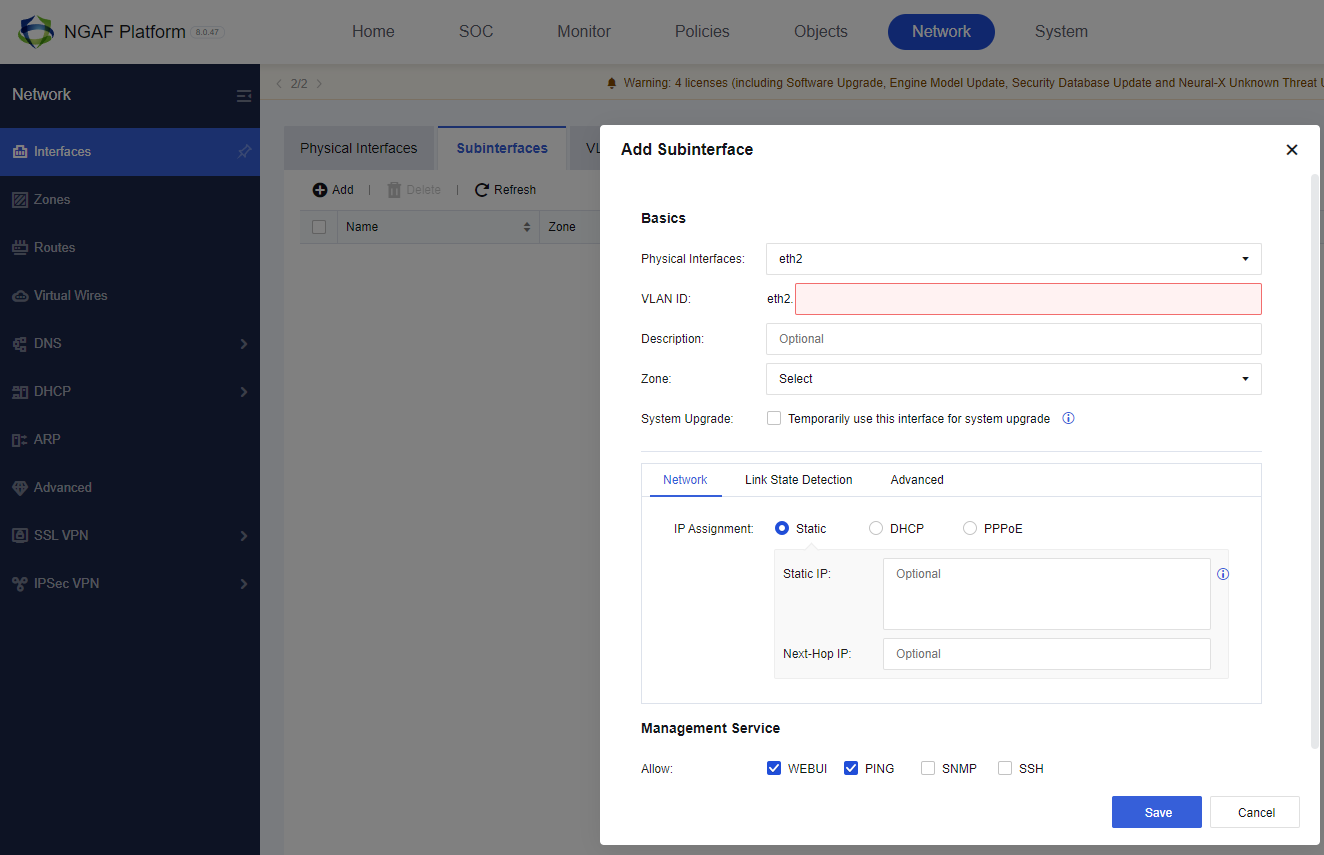

2. Subinterface

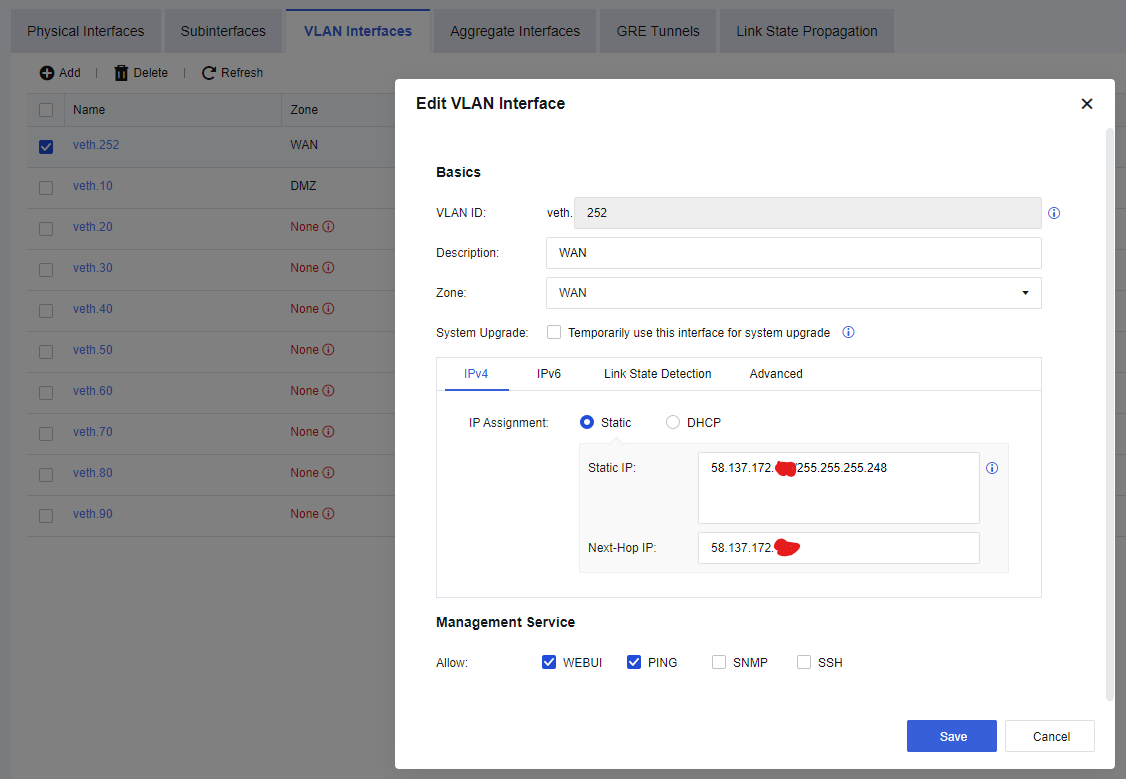

3. VLAN Interface

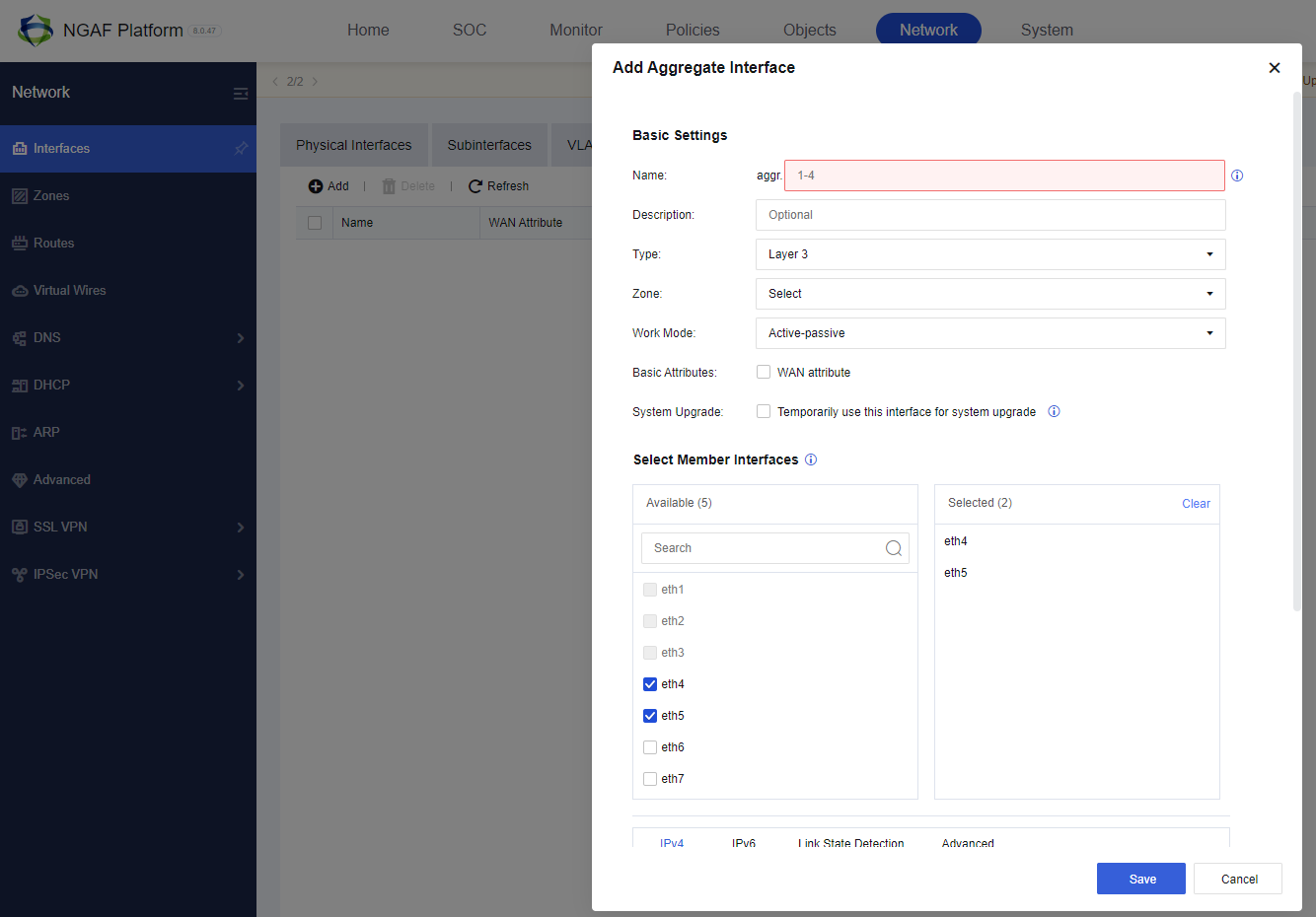

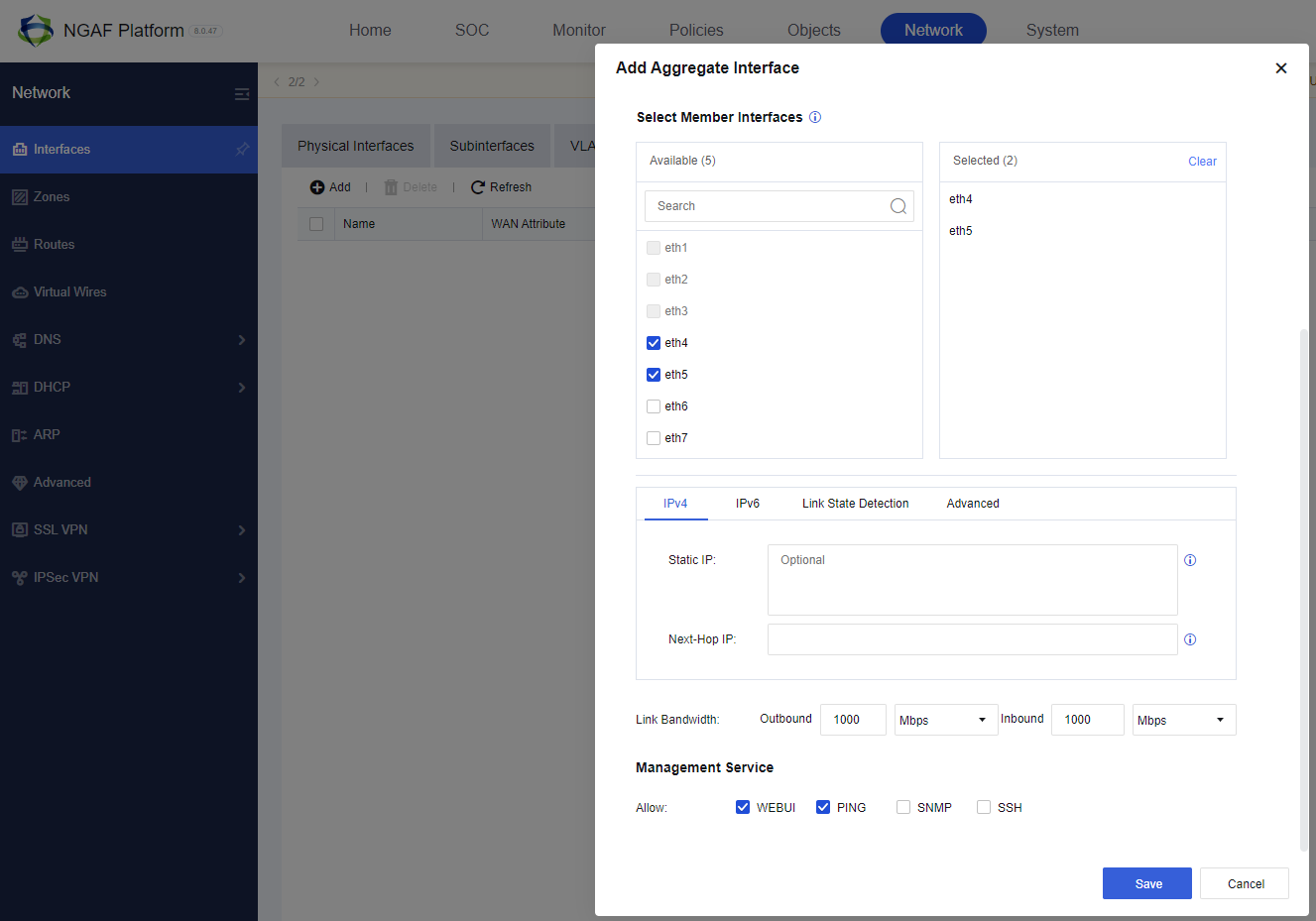

4. Aggregate Interface - เลือกว่าจะให้รวมแล้วเป็น L3 L2 L1

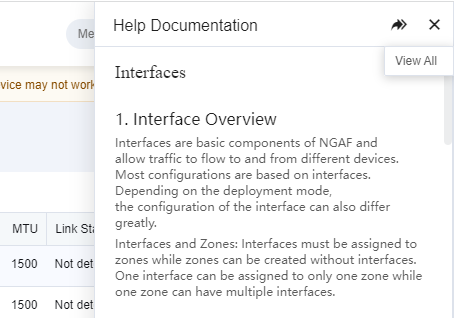

สามารถกดดูคำอธิบายของ Interface แต่ละประเภทได้ที่ ? ด้านขวาของหน้าเว็ป
และกด View All เพื่ออ่านข้อมูลเป็นหน้าใหม่
